📁 Drive

Practice file storage with HIPAA-grade isolation. Documents, spreadsheets, presentations, and patient-linked attachments — searchable, share-controlled, audit-logged. Lives at synalux.ai/drive.

---

📄 Three Native File Types

* Doc — rich-text document (collaborative editing via the Collaborative Editors module).

* Sheet — spreadsheet with formula support.

* Presentation — slide deck.

Each file is RLS-scoped to its workspace and (optionally) to a patient. A new file is created with one click and opens in the in-app editor — no external app, no provider OAuth.

---

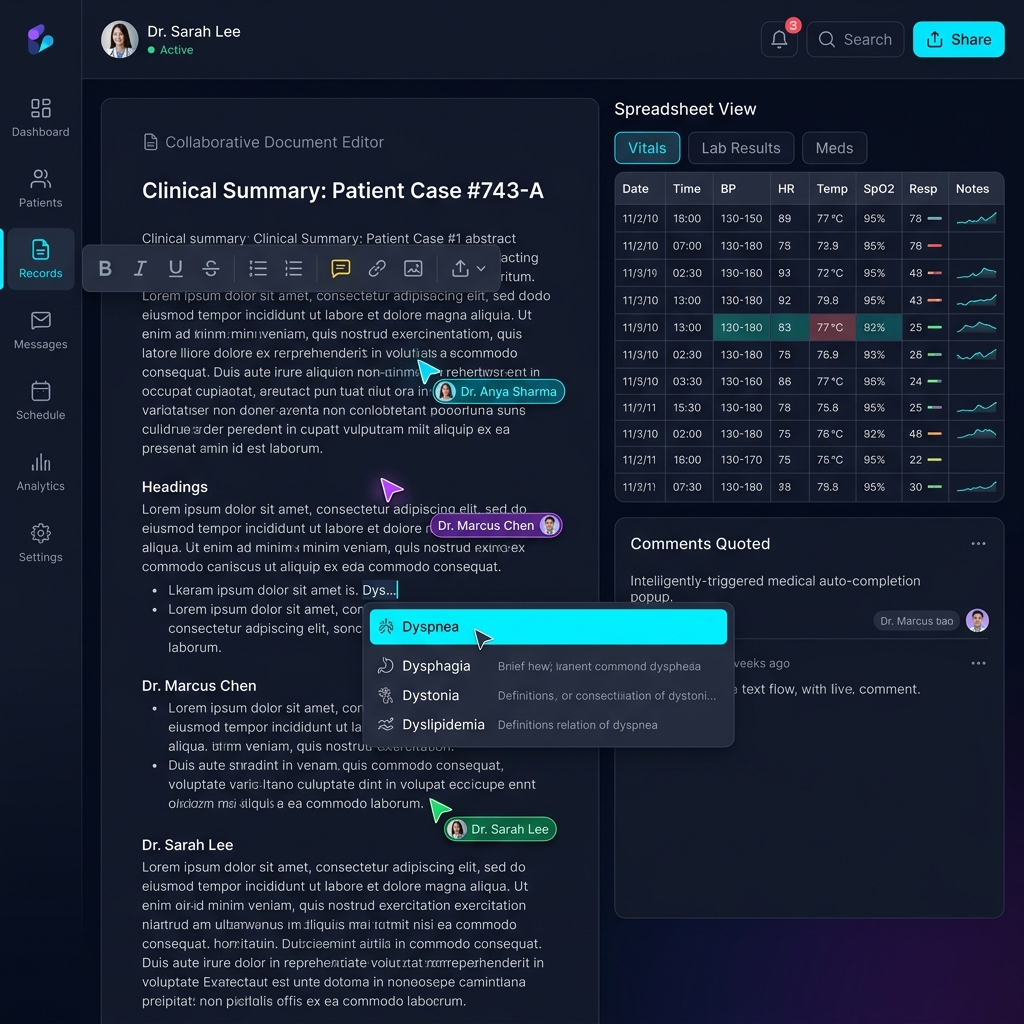

!Collaboration Suite — Drive

📤 Upload, Share, Delete (In-Place)

* Upload — drag-drop or browse; 50MB per-file boundary (hardened against partial-upload state).

* Share — link or per-user invite. Emails sent via the Mail module; recipient name HTML-escaped in the invite body (closed stored XSS).

* Permission tiers — viewer / editor / owner; revocable.

* Delete — soft-delete by default with 30-day recovery window; hard-delete on admin override.

!Collaborative Sheets

---

🩺 Patient-Linked Files

Attach a file to a patient record so it appears under their chart automatically.

* Browse from patient view — Documents tab shows everything filed for that patient.

* Filter — by file type, date, uploader, tag.

* HIPAA: patient_id is part of the RLS predicate, so a clinician can never see another workspace's patient files.

---

🔒 Security & HIPAA

* RLS-scoped client — every list/read uses createRlsClient(session); the database denies cross-workspace queries even if the API code has a bug.

* storage_path validation — uploads are written to a controlled prefix; path-traversal attempts (../, absolute paths) rejected.

* withAudit({ module: 'drive' }) — every list / upload / share / delete writes an audit row with operation type, user_id, file_id, IP.

* Workspace isolation guard — double-locks at API layer in case RLS is misconfigured.

* 50MB boundary — hardened with a storage rollback transaction so a partial upload never leaves orphan bytes in object storage.

---

🏗️ Architecture


GET    /api/v1/drive               List files (RLS-scoped, filter by type/patient/search)
POST   /api/v1/drive               Create new doc/sheet/presentation
GET    /api/v1/drive/:id           Read file metadata + content
PATCH  /api/v1/drive/:id           Update content / rename / move
DELETE /api/v1/drive/:id           Soft-delete (or hard-delete with admin override)
POST   /api/v1/drive/upload        Direct file upload (50MB cap, storage_path validated)



| Layer | Tech |
|---|---|
| Frontend | Next.js 15 App Router, in-app editors |

| Storage | Supabase Storage (object) + Postgres metadata table drive_files |


| Auth | NextAuth + RLS per-workspace |
| Encryption | At-rest via Supabase Storage; TLS 1.3 in transit |

| Audit | withAudit({ module: 'drive' })` |

| Sync conflict resolution | CRDT-based (collaborative editors) |

---

💳 Plans

|---|---|---|---|---|

| 1 GB storage | ✅ | ✅ 10 GB | ✅ 100 GB | ✅ 1 TB |

| Doc / Sheet / Presentation | ✅ | ✅ | ✅ | ✅ |

| Patient-linked files | — | ✅ | ✅ | ✅ |

| Share by link | — | ✅ | ✅ | ✅ |

| Per-user share permissions | — | ✅ | ✅ | ✅ |

| Real-time collaborative editing | — | — | ✅ | ✅ |

| Bulk export | — | — | ✅ | ✅ |

| Custom retention policies | — | — | — | ✅ |

| BAA-grade encryption keys (BYOK) | — | — | — | ✅ |

See full pricing →

---

🔄 Inter-Module Integration

* Mail — attachments uploaded via Drive; storage_path validated.

* Patients — Documents tab on every patient record reads filtered Drive list.

* Telehealth — meeting recordings stored in Drive when consented.

* SOAP / Clinical Notes — exported as Doc files when finalized.

* No-Code Dashboard Builder — Drive widgets surface recent / patient-filtered files.
